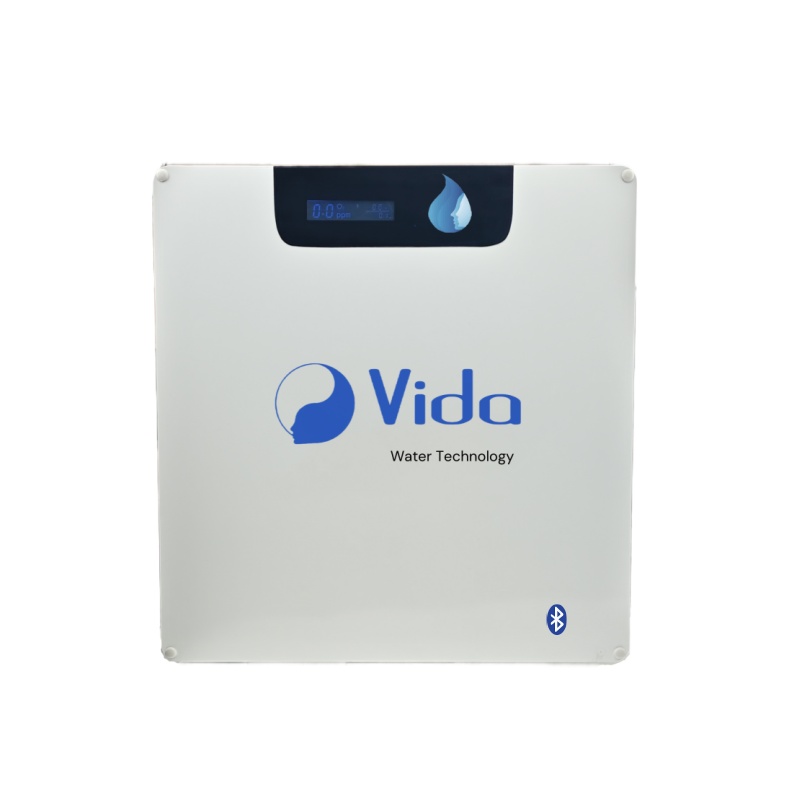

Maxflow O3

Commercial & Industrial  ozone water generator  for laundry and Eco cleaning

Unit description

• 24 to 48 l/h ozone water system for laundry and Eco cleaning. High Ozone concentration 1,5 to 2 ppm in a long term.
• Double exit port  for laundry purposes and independent faucet for Eco cleaning.
• Endurance O3 function which remains O3 dissolve in water up to 8 hours after its produce and dose.



  TECNICAL DATA
  Model	Maxflow O3
  CA/DC	240/12VDC
  IN /OUT PORT	3/4" 3/4" 1“
  Max water pressure	6bar
  Water temperature range	10-37℃
  Pipping, fittings	PVC / Copper
  Water supply	Potable water source
  Ozone dissolve concentration	1L/m >1200ppm    300-400mg / h, 3-5L/m
  Flow rate	24 to 48 l/min at 6bar
  PH water source	4/11ph
  Valor ORP	>1000Mv
  Size	535X485X163mm       730X540X163mm
  Electrolysis power supply	DC 12V/3A
  Warnings	Failure alarm(Acoustic+warning LED) Double leak detector as option
